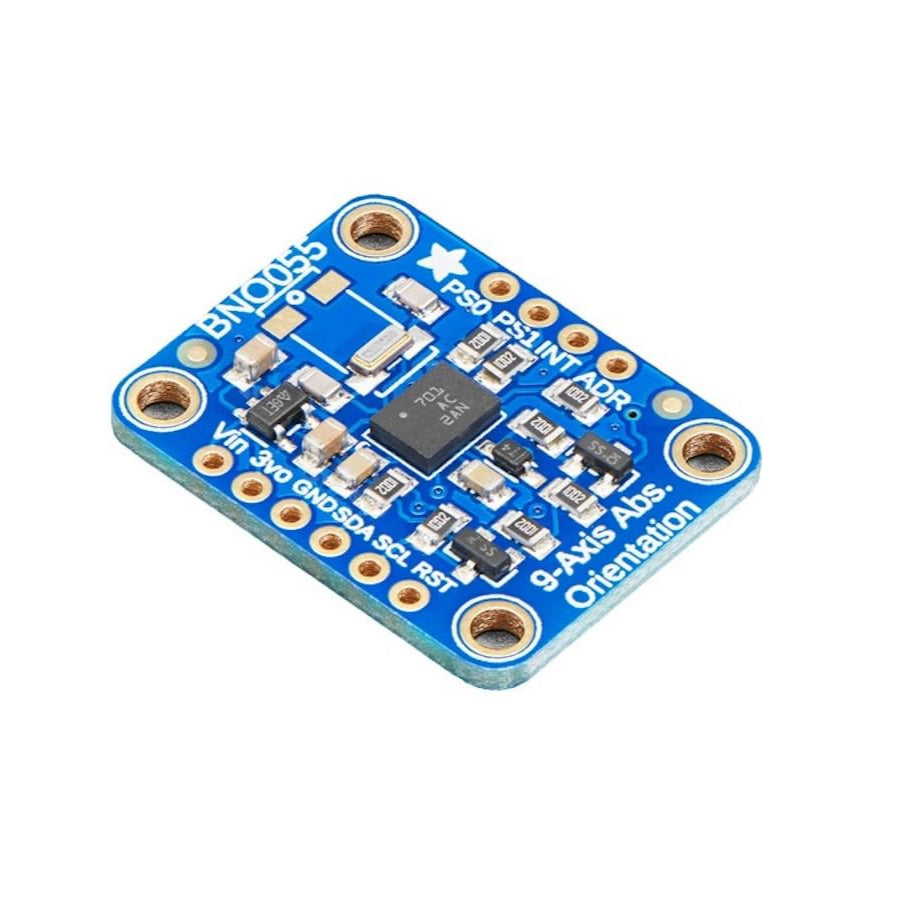

Adafruit 9-DOF Absolute Orientation IMU Fusion Breakout - BNO055

Adafruit 9-DOF Absolute Orientation IMU Breakout – BNO055 | Now Available in Egypt

Struggling with sensor fusion in your embedded projects? The Adafruit 9-DOF IMU Breakout – BNO055 is your ultimate solution, now available in Egypt at DevBoardsMarket. This advanced breakout board takes the complexity out of 3D orientation tracking by fusing data from an accelerometer, gyroscope, and magnetometer—all processed internally using Bosch’s high-performance ARM Cortex-M0 processor.

What Makes the BNO055 Special?

Forget writing complex algorithms. The BNO055 handles sensor fusion on-chip and outputs ready-to-use orientation data—making it ideal for robotics, drones, AR/VR, motion tracking, and wearable tech in Egypt.

Sensor Output Data:

• Euler Angles (100Hz): 3D orientation across a 360° sphere

• Quaternions (100Hz): High-accuracy orientation output

• Angular Velocity (100Hz): Rotation rate in rad/s

• Acceleration (100Hz): Combined gravity and motion data

• Magnetic Field (20Hz): Magnetic strength in µT

• Linear Acceleration (100Hz): Motion minus gravity

• Gravity Vector (100Hz): Gravity-only acceleration

• Temperature (1Hz): Ambient temp in °C

Simply connect the sensor via I2C and start receiving real-time orientation data in minutes—no algorithm tuning required.

Key Features:

• Fully integrated 9-DOF IMU sensor

• Plug-and-play via I2C with Arduino, Raspberry Pi, and more

• Compact breakout board with ready-to-use libraries from Adafruit

• Bosch BNO055 chip with built-in sensor fusion firmware

• Ideal for projects involving motion sensing, navigation, and orientation tracking

Package Includes:

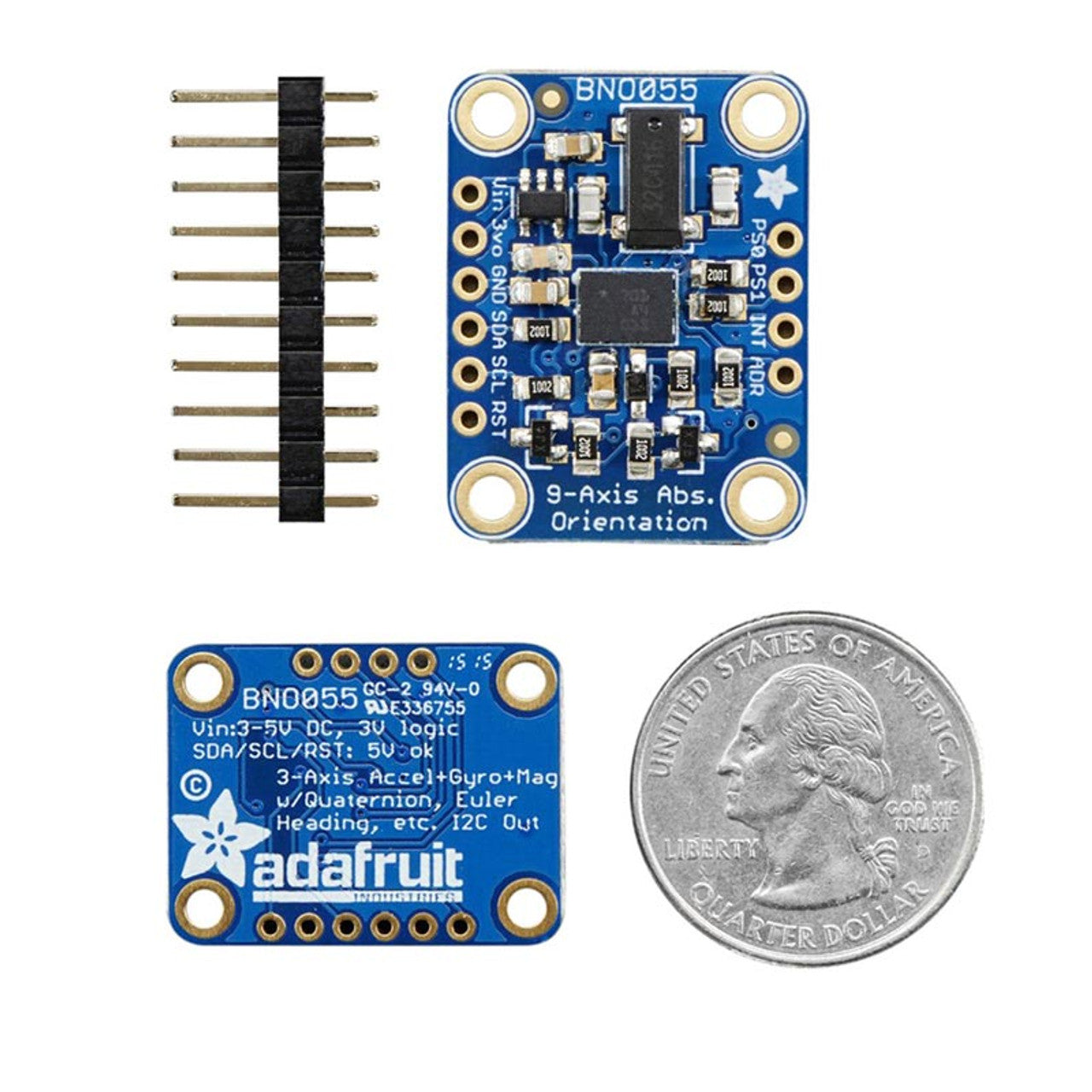

• 1x Adafruit BNO055 9-DOF IMU Fusion Breakout Board

Buy IMU Sensors in Egypt

Get the Adafruit BNO055 IMU Breakout now from DevBoardsMarket.com, your reliable source for development boards and sensors in Egypt.

Start building smarter, faster orientation-aware systems with the BNO055—available now in Egypt!
