LattePanda 3 Delta 864 - 8GB RAM/64GB eMMC
LattePanda 3 Delta 864 - 8GB RAM/64GB eMMC
Max per Customer:
Couldn't load pickup availability
Shipping
Shipping
Shipping Areas We ship all over Egypt.
Shipping Times Orders placed before 1 p.m. will be shipped on the same day. Orders are typically delivered Next business day and 2-3 business days for far governorates.
Shipping Costs Shipping costs are calculated based on the shipping destination.
Payment
Payment
We offer several payment methods to make the payment more easier.
you can pay with:
- Credit/Debit Card
- Wallets like Vodafone Cash you can pay with wallet easily by choosing wallet from the top options in the payment gateway.
- Instapay you have to transfer the money then send transaction confirmation to whatsapp or facebook.
- Cash on Delivery (COD)
Collapsible content
Product Description
Now Available in Egypt!
ULTRA PERFORMANCE IN A POCKET SIZE

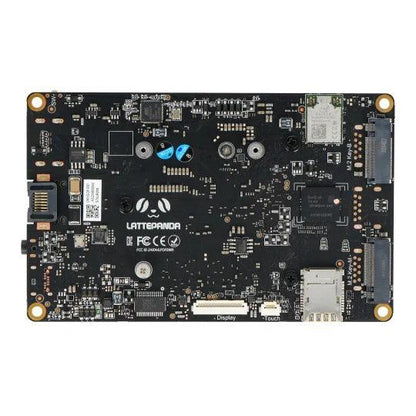

LattePanda 3 Delta is an x86 single board computer powered by the Intel N5105 quard-core processor. With the Intel turbo boost technology, it can reach speeds of up to 2.9 GHz. Compared to the previous LattePanda 2 Delta, the CPU speed has been doubled, while the GPU speed has been tripled. It's ideally suited for tasks such as image processing, edge computing, automation control, and more.
POCKET SIZE
The ultra-slim and pocket size of the LattePanda 3 Delta Windows 10 single board computer allows for integration into space-constrained devices, delivering powerful computation without occupying much space.
The dimensions, interfaces, and layout of the LattePanda 3 Delta closely resemble those of the previous LattePanda 2 Delta, ensuring a seamless migration or upgrading of your projects.
FASTER MEMORY，LARGER STORAGE
LattePanda 3 Delta is equipped with 8GB 2933MHz LPDDR4 high-speed memory, twice as much as LattePanda 2 Delta, ensuring smooth performance during large data processing and multitasking. Moreover, its eMMC storage capacity has been upgraded to 64GB, doubling that of the previous version, allowing for more professional software and data without requiring additional storage.
3-WAY VIDEO OUTPUT
The LattePanda 3 Delta x86 single board computer provides three video outputs: HDMI, Type C, and eDP, all supporting dual 4K HDR. This not only ensures the display of high-definition and realistic images but can also fulfill several displays either showing the same content collectively or presenting different content.
RICH EXPANDABLE INTERFACES
This industrial single-board computer is equipped with a multitude of interfaces, such as USB, HDMI, RS232, GPIO, Ethernet, eDP, and more. These versatile interfaces cater to a diverse range of industry demands.
Specification
Expansion Slots:
1x M.2 M Key (2280), PCIe 3.0 2x, Supports NVMe SSD
1x M.2 B Key (2242/2252/2280), USB 2.0, USB 3.0, SIM, SATA (Option support PCIe 3.0 1x), Supports 4G & 5G module
Network Connectivity:
1x Wi-Fi 6 @ 2.4GHz &5 GHz (160MHz)
1x Bluetooth 5.2
1x Intel 2.5 Gigabit Ethernet
USB Ports:
2x USB 3.2 Gen1 Type A
1x USB 3.2 Gen2 Type A
1x USB Type C, Supports PD, DP, USB 2.0
1x USB 2.0 Pin Header
Display:
1x HDMI 2.0b: Up to 4096x2160 @ 60Hz HDR
1x DP 1.4: Up to 4096x2160 @ 60Hz HDR
1x eDP: 30 Pins, 2 lanes, Extendable Touch Displays up to 1920*1080
TPM: built-in TPM (2.0)
Co-processor: Arduino Leonardo ATMEGA32U4Audio: Microphone + Headphone Combo Connector
GPIO & Other Features:
Up to 12x Analog Inputs
Up to 20x Digital Input/Output (7 PWM)
1x UART
1x I2C
1x SPI
1x Audio Header
1x RS232 Header
1x USB 2.0 Header
1x Fan Port (4 Pins, 1.25mm, PWM, 5V)
1x 4-Pin Header (Power and Switch)OS Support: Windows 10 & Windows 11 & LinuxInput Power:
PH2.0 - 4Pin DC Input: 12V
USB Type-C PD Input: 15V DCRTC Battery: CR927Dimension: 125 x 78 x 16mmOperating Temperature: 0°C~60°CCertification: CE, FCC, KC, RoHS
