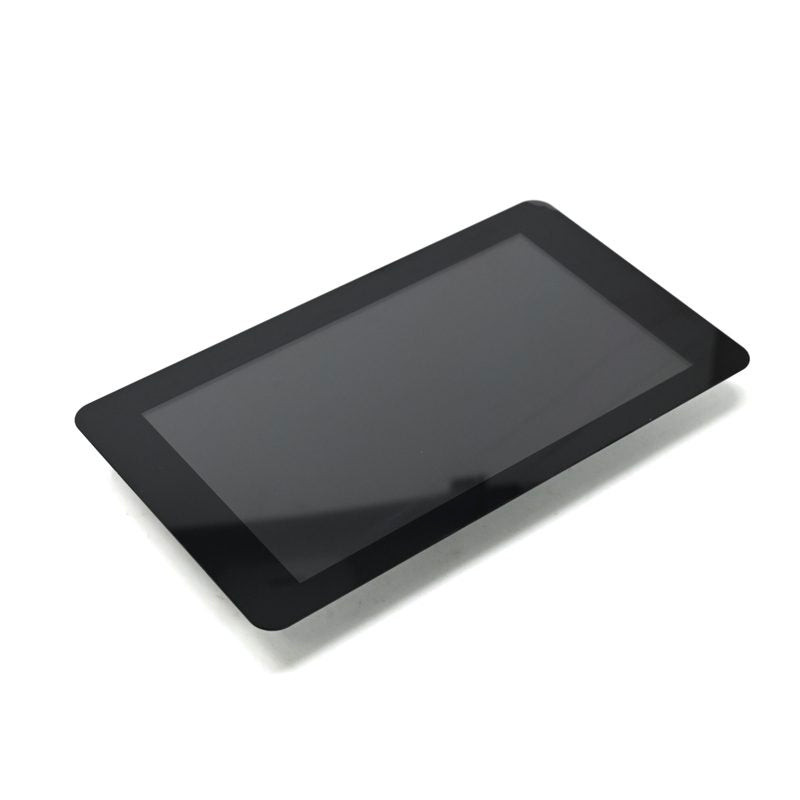

Raspberry Pi Official 7" Touchscreen Display

Now Available in Egypt! The 7” Touchscreen Monitor for Raspberry Pi gives users the ability to create all-in-one, integrated projects such as tablets, infotainment systems and embedded projects.

The 800 x 480 display connects via an adapter board which handles power and signal conversion. Only two connections to the Pi are required; power from the Pi’s GPIO port and a ribbon cable that connects to Raspberry Pi boards with a DSI connector.

Touchscreen drivers with support for 10-finger touch and an on-screen keyboard are integrated into the Raspberry Pi OS for full functionality without a physical keyboard or mouse.

• Turn your Raspberry Pi into a touchscreen tablet, infotainment system, or standalone device
• Truly Interactive - supports a virtual ‘on-screen’ keyboard, so there is no need to plug in a keyboard and mouse
• Make your own ‘Internet of Things’ (IoT) devices including a visual display. Simply connect your Raspberry Pi, develop a Python script to interact with the display, and you’re ready to create your own home automation devices with touchscreen capability
• A range of educational software and programs available on the Raspberry Pi are touch-enabled, making learning and programming easier on the Raspberry Pi

Kit Contents

• 7” Touchscreen Display
• Adapter Board
• DSI Ribbon cable
• 4 x stand-offs and screws (used to mount the adapter board and Raspberry Pi board to the back of the display
• 4 x jumper wires (used to connect the power from the Adapter Board and the GPIO pins on the Pi so the power is shared across both units)

Specifications

• 7” Touchscreen Display.
• Screen Dimensions: 194mm x 110mm x 20mm (including standoffs)
• Viewable screen size: 155mm x 86mm
• Screen Resolution 800 x 480 pixels
• 10-finger capacitive touch.
• Connects to the Raspberry Pi using a ribbon cable connected to the DSI port
• An adapter board is used to power the display and convert the parallel signals from the display to the serial (DSI) port on the Raspberry Pi
