STM32F429I-DISC1 STM32F4 Discovery Kit Development Board
LE 4,250.00
Collapsible content
Product Description
Product Overview

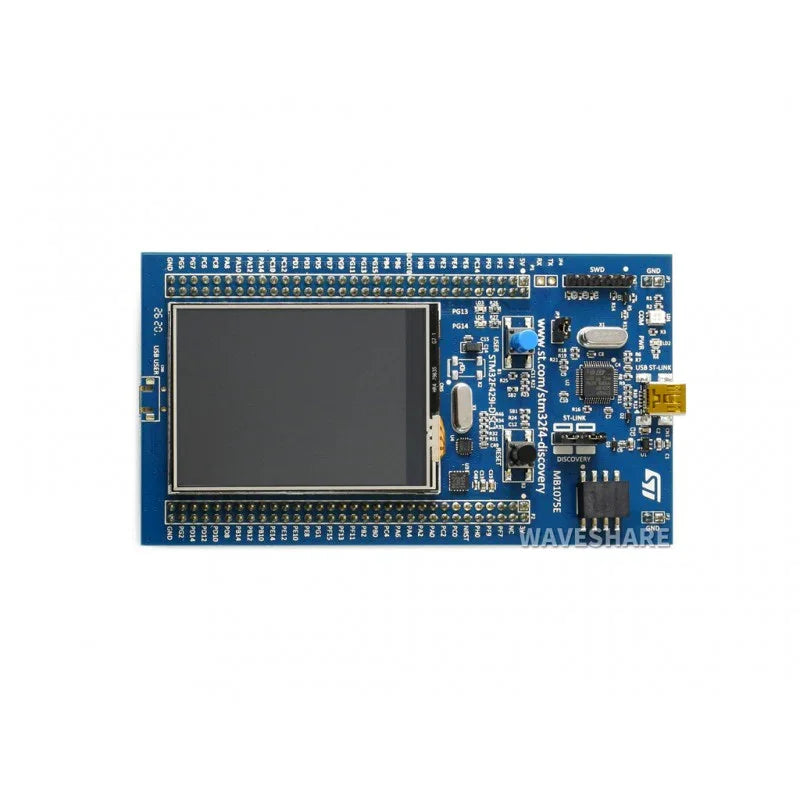

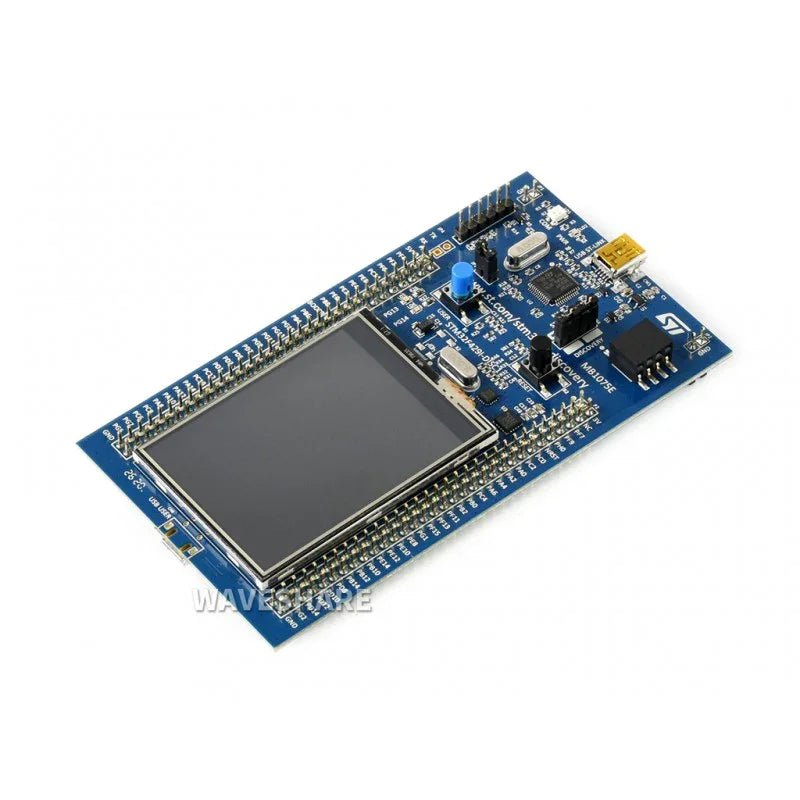

The STM32F429 Discovery Kit (32F429IDISCOVERY) is a powerful and feature-rich development platform designed for engineers, students, and embedded systems professionals. Built around the STM32F429ZIT6 high-performance microcontroller, this board is based on an Arm® Cortex®-M4 core with FPU, making it ideal for graphics-intensive, real-time, and industrial applications.
This Discovery kit comes fully equipped with a 2.4-inch QVGA TFT LCD, external 64-Mbit SDRAM, ST-MEMS 3-axis gyroscope, and USB OTG, allowing rapid prototyping of advanced embedded applications without additional hardware.
An on-board ST-LINK/V2-B debugger/programmer is included, enabling easy programming, debugging, and USB communication directly from your PC. Combined with STM32CubeF4 libraries and examples, the STM32F429 Discovery kit significantly reduces development time.
Key Features & Specifications
-
STM32F429ZIT6 MCU
- Arm® Cortex®-M4 core with FPU
- 180 MHz CPU frequency
- 2 MB Flash memory
- 256 KB SRAM
- LQFP144 package
- Display & User Interface
- 2.4" QVGA TFT LCD
- Reset and user push-buttons
- 6 onboard LEDs for power, USB, and user status
-
Memory & Sensors
- External 64-Mbit SDRAM
- ST-MEMS 3-axis digital gyroscope
-
Connectivity
- USB OTG Micro-AB connector
- 2.54 mm expansion headers for GPIO and peripherals
-
Debugging & Programming
- On-board ST-LINK/V2-B
- Supports Mass Storage, Virtual COM Port, and Debug interface
-
Power Options
- ST-LINK USB VBUS
- USB connector
- External power sources
- Software & IDE Support
-
- STM32CubeF4 MCU Package
- Compatible with STM32CubeIDE, IAR Embedded Workbench, and Keil MDK-ARM
Industrial & Professional Applications
The STM32F429 Discovery kit is widely used in industrial and commercial embedded systems, including:
- Human-Machine Interfaces (HMI) with graphical LCDs
- Industrial control panels
- Factory automation systems
- Medical device prototyping
- Smart instrumentation and data loggers
- Motor control and real-time monitoring
- IoT gateways and embedded dashboards
- Education and R&D labs
Its powerful Cortex-M4 core, floating-point unit, and graphics support make it suitable for production-level prototyping and industrial validation.
Why Choose STM32F429 Discovery?
- High-performance MCU for demanding applications
- Built-in display and sensors for rapid development
- Professional debugging with ST-LINK
- Strong ecosystem and long-term STMicroelectronics support
- Trusted by engineers, universities, and industrial developers worldwide
📍 Buy STM32F429 Discovery Kit in Egypt
Order your STM32F429 Discovery Kit (32F429IDISCOVERY) today from DevBoardsMarket.com, Egypt’s trusted store for development boards and embedded systems hardware.
Enjoy same-day shipping for orders placed before 12 PM and nationwide delivery across Cairo, Alexandria, and all major cities in Egypt.
