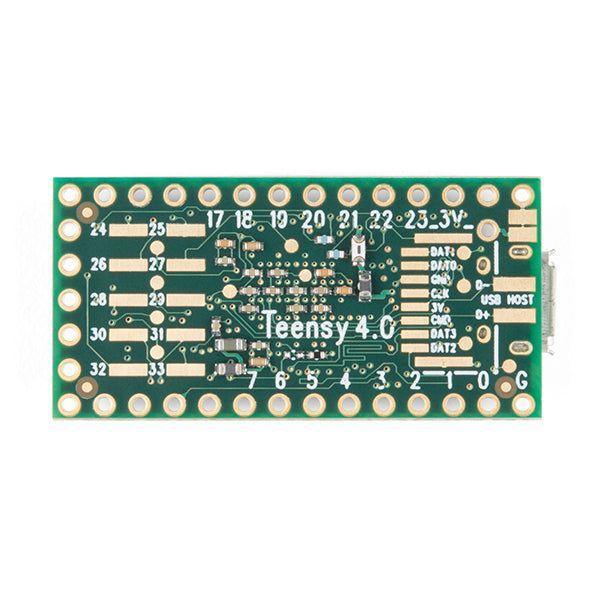

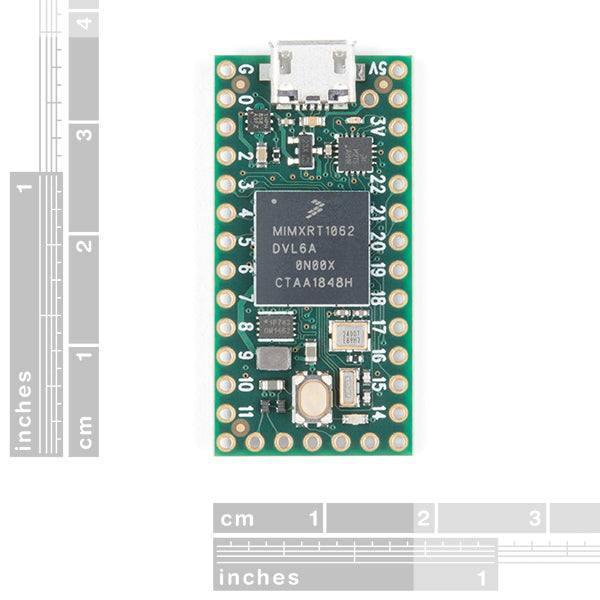

Teensy 4.0 Development Board

Teensy 4.0 – Ultra-High Performance Microcontroller Board, Now Available in Egypt

The Teensy 4.0 is one of the fastest microcontroller development boards available today, designed for engineers, students, and makers in Egypt who need extreme processing power in a compact form factor. Built around an ARM Cortex-M7 processor running at 600 MHz, Teensy 4.0 delivers performance that rivals many single-board computers—while maintaining true real-time behavior.

Despite its incredible speed, Teensy 4.0 keeps the same compact footprint and pin layout as Teensy 3.2, making it an easy drop-in upgrade for existing projects. With 1MB of RAM and 2MB of Flash memory, it is well-suited for demanding applications such as real-time audio processing, motor control, robotics, industrial control systems, and advanced embedded computing.

At its core is the NXP MIMXRT1062, a “Crossover MCU” that bridges the gap between traditional microcontrollers and high-end processors. Its dual-issue superscalar architecture allows the CPU to execute two instructions per clock cycle, while branch prediction significantly boosts loop performance. The integrated hardware floating-point unit (FPU) accelerates both 32-bit and 64-bit math operations, making complex calculations fast and efficient.

To support the 600 MHz clock speed, Teensy 4.0 uses Tightly Coupled Memory (TCM), allowing ultra-fast, single-cycle access to critical code and data. This architecture ensures minimal latency and excellent performance for DMA-based peripherals such as audio, SD cards, and high-speed I/O.

Power management is equally advanced. Teensy 4.0 supports dynamic clock scaling without breaking timing functions, serial communication, or audio streams. A dedicated power on/off pin allows complete shutdown for battery-powered projects, while RTC support keeps time even when the main power is disconnected. For advanced users, Teensy 4.0 can also be overclocked beyond 600 MHz.

Whether you are developing high-speed embedded systems, real-time audio projects, robotics platforms, or industrial control applications, Teensy 4.0 offers unmatched performance in a tiny, breadboard-friendly board.

Key Features & Specifications

• ARM Cortex-M7 CPU @ 600 MHz

• 1MB RAM (512KB tightly coupled for ultra-low latency)

• 2MB Flash memory with EEPROM emulation

• Dual USB 480 Mbps ports

• 3 CAN buses (including CAN FD)

• Advanced audio support: I2S and S/PDIF

• Native SDIO for SD cards

• Multiple SPI, I2C, and Serial interfaces

• 31 PWM pins, 40 digital I/O pins, all interrupt capable

• Hardware cryptography and random number generator

• Real-Time Clock (RTC) with battery backup

• Programmable FlexIO and pixel processing support

• Compact, breadboard-friendly design

Note: Headers are not included.
